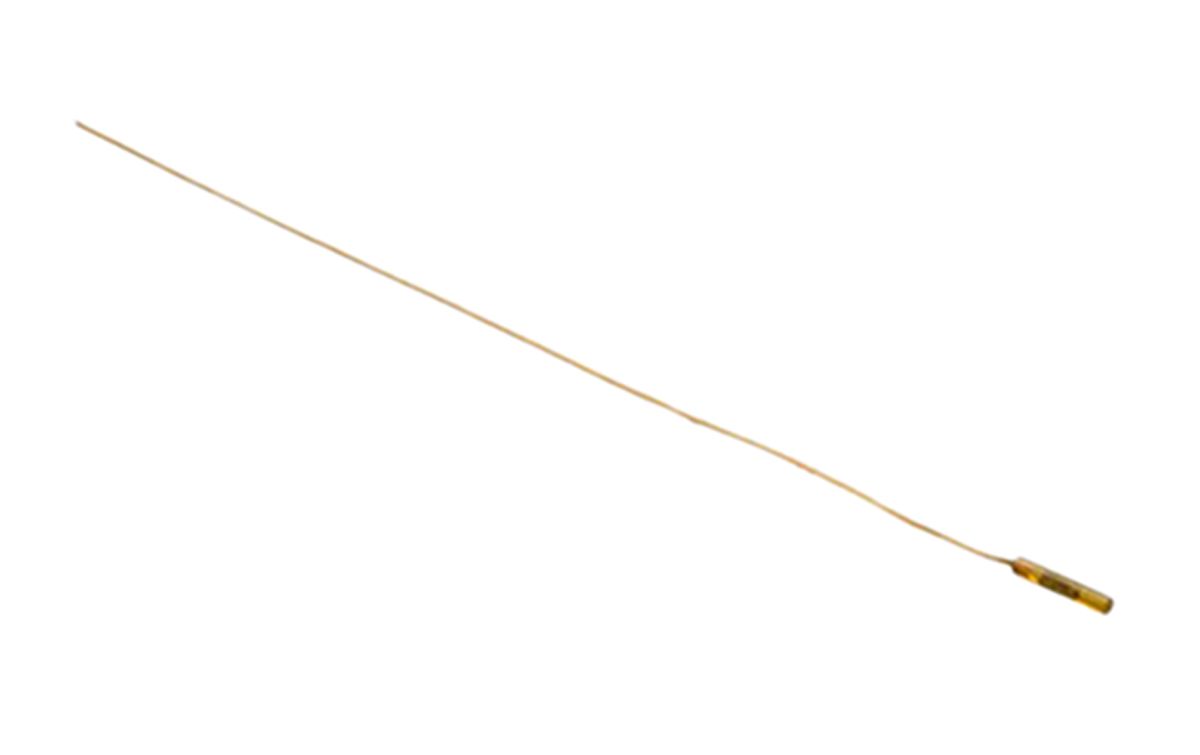

TE Connectivity GA10K3MCD1 Thermistor 10kΩ, 0.5 x 155mm
- RS Stock No.:
- 8937180
- Mfr. Prt No.:
- GA10K3MCD1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
Substance | Concentration |
Lead | 0.1% |
Mercury | 0.1% |
PBB (Polybrominated Biphenyls) | 0.1% |
PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
Hexavalent Chromium | 0.1% |
Cadmium | 0.01% |
DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
BBP (Benzyl butyl phthalate) | 0.1% |
DBP (Dibutyl phthalate) | 0.1% |
DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
RS stock number | 8937180 |
Product description | TE Connectivity GA10K3MCD1 Thermistor 10kΩ, 0.5 x 155mm |
Manufacturer / Brand | TE Connectivity |
Manufacturer part number | GA10K3MCD1 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
RS stock number | 8937180 |
Product description | TE Connectivity GA10K3MCD1 Thermistor 10kΩ, 0.5 x 155mm |
Manufacturer / Brand | TE Connectivity |
Manufacturer part number | GA10K3MCD1 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Dec 28, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
TE Connectivity Polyimide Micro BetaCHIP NTC Thermistors (MCD)
TE Connectivity’s MEAS MCD series of NTC thermistor probes offer a rapid time response and are constructed with an NTC thermistor soldered to 38 AWG solid nickel bifilar with polyester insulation. The NTC thermistor is potted in a polyimide tube with a thermally conductive epoxy.
Ideal for use in the consumer goods and medical industries, suitable applications for these NTC probes include low volume flow sensors (liquid or gas), laboratory animal research, DNA research sensors, medical catheters, temperature control for bath showers and peltier temperature tracking sensors.
Rapid time response (200 milliseconds in liquids)
Small tip diameter
2Ω to 100kΩ resistance at 25°C
Supplied with a ±0.2°C tolerance at 25°C
Specifications
Attribute | Value |
Brand | TE Connectivity |
Temperature Coefficient Type | NTC |
Thermal Coefficient | -4.39 %/°C |
Resistance @ 25 °C | 10 kΩ |
Series | Micro-BetaChip |
Length | 155 mm |
Tolerance | ±0.5 % |
Dimensions | 0.5 x 155 mm |
