RS PRO Signal Conditioner Amplifier
- RS Stock No.:
- 4662286
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 4662286 |
| Product description | RS PRO Signal Conditioner Amplifier |
| Manufacturer / Brand | RS PRO |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Dec 23, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: GB
Product Details

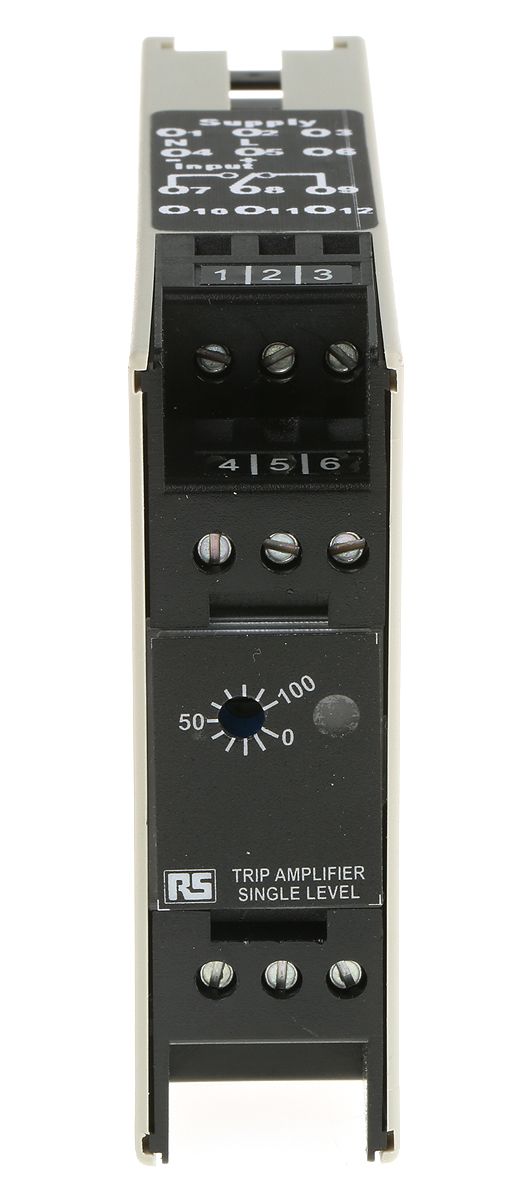

BD100 Single Level Trip Amplifier
RS Pro single level trip amplifiers operate from a single process input, with a single trip action. This output can be arranged so that the alarm condition is triggered either above or below the defined set point. The relay can also be configured for a Fail-Safe (energised in the stable state to de-energise in the alarm state) or Non-Fail Safe (de-energised in the stable state to energise in the alarm state) operation.
1 x SPCO relay (max. 60W load) output
Adjustable set points
High and/or low trips (user-configurable)
Bi-colour LED trip status indication: Green LED indicates stable state; red LED indicates alarm state
Specifications
| Attribute | Value |
| Brand | RS PRO |
| Termination | Screw |
| Minimum Operating Temperature | 0 °C |
| Signal Conditioner Type | Analogue to Relay |
| Mounting Type | DIN Rail |
| Supply Voltage | 115 V ac |
| Input Range | 4 - 20 mA |
| Maximum Operating Temperature | +45 °C |
| Output Type | Relay |
| Module Type | 1 Level Trip Amplifier |
| Operating Temperature Range | 0 ? +45 °C |
