Click mikroBUS™ Motor Driver Boards

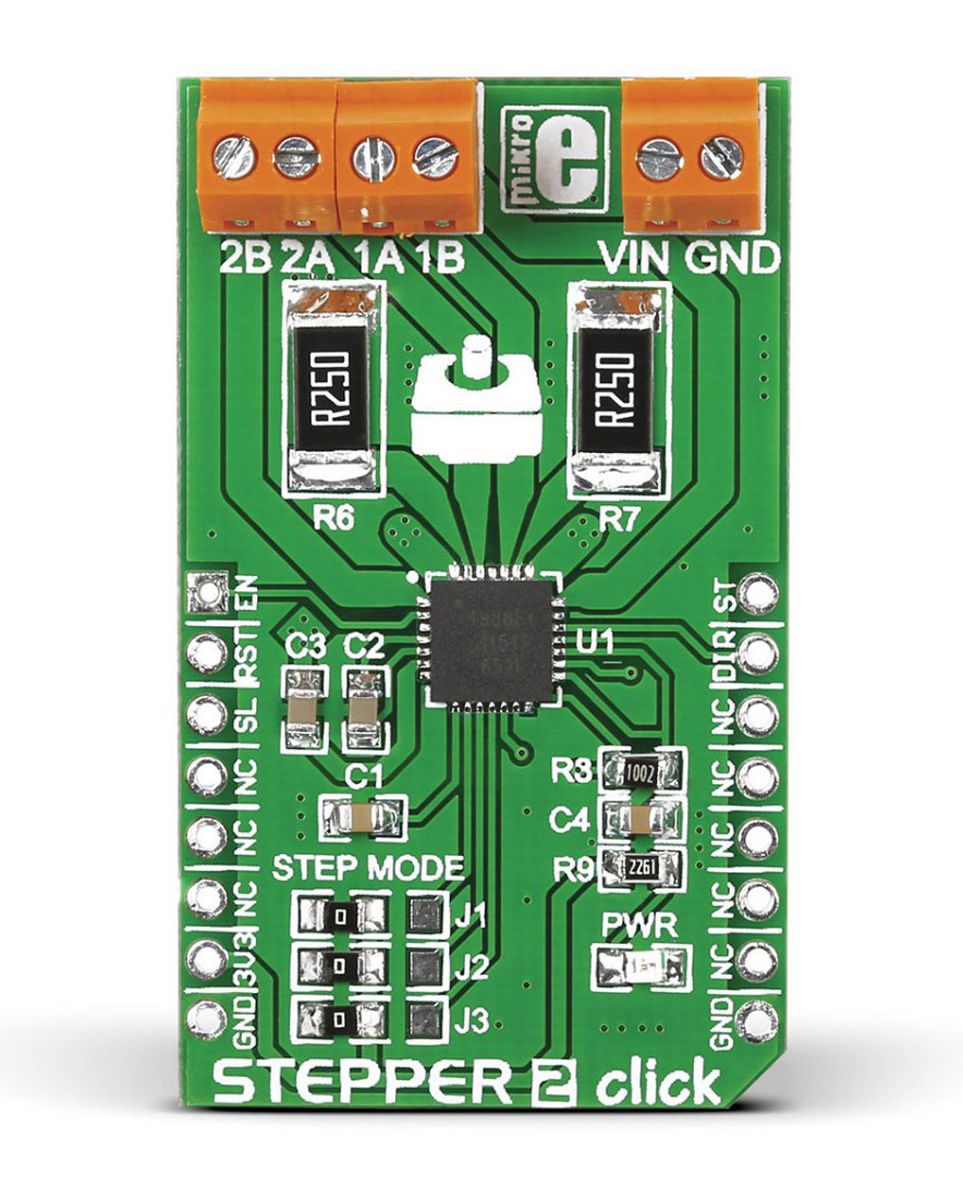

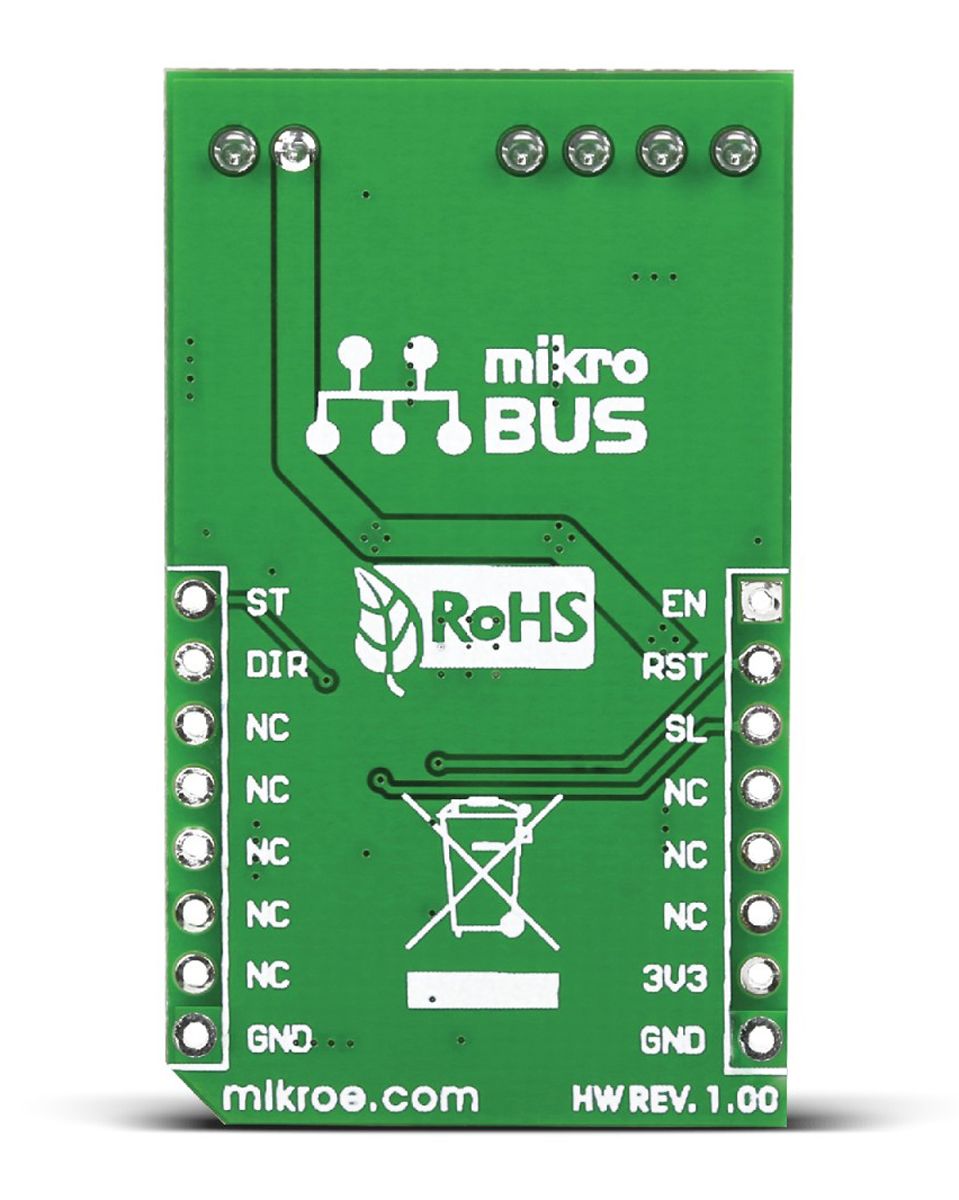

Stepper 2 click mikroBUS™
The Stepper 2 click is an add-on board that driver bipolar stepper motors in micro-stepping modes. The Allegro MicroSystems A4988, DMOS Micro-stepping Driver with Translator and Overcurrent Protection operates directly the 2-phase step motor windings. With the translator, it is easy to drive a micro-step on the motor by simply inputting one pulse on the STEP input.
Note
Click board comes with the header strips soldered.
External motor power supply 7 to 35 V dc capable of 2A
Step motors in full, half, quarter, eighth and sixteenth-step modes
Three on-board jumpers (J1-J3) select the different stepping modes
3.3 V or 5 V power supply on mikroBUS socket
Thermal shutdown protection
Short circuit protection
Dimensions 42.9 x 25.4 mm
Specifications
Attribute | Value |
Brand | MikroElektronika |
Kit Classification | Development Board |
For Use With | MikroBUS |
Featured Device | A4988 |
Kit Name | Stepper 2 click |
