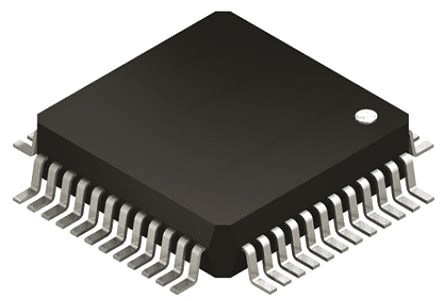

STMicroelectronics STM32F302CCT6, 32bit ARM Cortex M4 Microcontroller, STM32F, 72MHz, 256 kB Flash, 48-Pin LQFP
- RS Stock No.:
- 8107645
- Mfr. Prt No.:
- STM32F302CCT6
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 8107645 |
| Product description | STMicroelectronics STM32F302CCT6, 32bit ARM Cortex M4 Microcontroller, STM32F, 72MHz, 256 kB Flash, 48-Pin LQFP |
| Manufacturer / Brand | STMicroelectronics |
| Manufacturer part number | STM32F302CCT6 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 8107645 |
| Product description | STMicroelectronics STM32F302CCT6, 32bit ARM Cortex M4 Microcontroller, STM32F, 72MHz, 256 kB Flash, 48-Pin LQFP |
| Manufacturer / Brand | STMicroelectronics |
| Manufacturer part number | STM32F302CCT6 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 18, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
STM32F3 Series 32-Bit ARM® Cortex®-M4 Microcontrollers, STMicroelectronics
The STM32 F3 series of mixed-signal MCUs with DSP and FPU instructions combines a 32-bit ARM Cortex-M4 core running at 72MHz with an advanced analogue peripheral set.
STM32F302 Series Microcontrollers, STMicroelectronics
STMicroelectronics STM32 F302 mixed signal microcontroller with the 32-bit ARM Cortex M4 core operates on the 72 MHz frequency and comes with integrated analogue peripherals such as DACs, ADCs, DSP and FPU (floating point unit) and CCM (core coupled memory).
Fast comparators (50ns)
Programmable gain amplifiers (4 gain ranges)
12-Bit DACs
Fast 12-Bit ADCs (5 MSPS per channel with up to 18MSPS in interleaved mode)
16-Bit sigma-delta ADCs
Fast 144MHz motor control timers, timing resolution better 7ns
Comparators (50ns)
Op Amp with programmable gain (PGA)
12-bit DACs; 12-bit ADCs with MSPS; 16-bit ADCs
Memory architecture for RAM: CCM (Core Coupled Memory)
Motor control timers (144 MHz)
Communication interface: USB FS and CAN 2.0B
Operation voltage 3.6 V
Memory 256 Kb
Specifications
| Attribute | Value |
| Brand | STMicroelectronics |
| Number of UART Channels | 0 |
| Number of Ethernet Channels | 0 |
| Number of Timers | 11 |
| Family Name | STM32F |
| Number of I2C Channels | 2 |
| Number of PCI Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| ADC Resolution | 16 bit, 32 bit |
| Program Memory Size | 256 kB |
| Number of PWM Units | 1 x 16 bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16 bit |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Instruction Set Architecture | RISC |
| ADCs | 8 x16/32 bit |
| Number of CAN Channels | 1 |
| Mounting Type | Surface Mount |
| ADC Channels | 8 |
| Number of ADC Units | 1 |
| Package Type | LQFP |
| Maximum Operating Temperature | +85 °C |
| Length | 7.2 mm |
| Data Bus Width | 32 bit |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.45 mm |
| Number of LIN Channels | 0 |
| PWM Channels | 6 |
| Width | 7.2 mm |
| Device Core | ARM Cortex M4 |
| Number of USART Channels | 3 |
| Timers | 1 x 32 bit, 2 x 16 bit |
| Dimensions | 7.2 x 7.2 x 1.45 mm |
| RAM Size | 40 kB |
| Pin Count | 48 |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| Program Memory Type | Flash |
| Number of SPI Channels | 3 |
| Maximum Frequency | 72 MHz |
| USB Channels | 1 |
