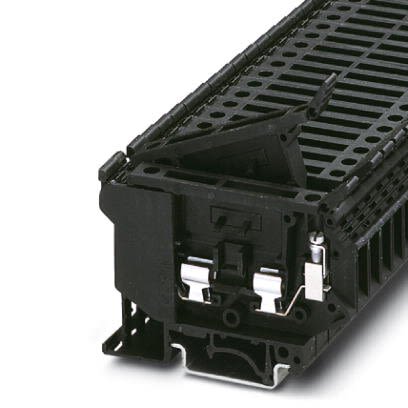

Phoenix Contact, Fused DIN Rail Terminals
The Phoenix Contact UK-5-HESI series of fuse modular terminal blocks offer excellent protection to electrical systems, protecting them against overcurrent and short-circuiting. Easily clipped onto DIN rail, the range is easily interchanged and therefore offers you greater flexibility with the part.
Note
Parameters in tech. spec. table are with respect to UL and CSA Approvals. With UL approval these products have a nominal rating of 10A @ 600V; with CSA approval they have a nominal rating of 25A @ 600V
APPROVALS : UL recognised component, CSA certified
Features and Benefits
• Large-surface labeling
• Safety lever locked in end position
• Hinged disconnect lever
• Flip-open compartment to accommodate a fuse
• Options to accommodate 5x20mm and 6.3x32mm fuses
• Terminal width 8.2 (5x20mm), and 10.2 (6.3x32mm)
Typical Applications
• Protecting critical sensor or relay equipment
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
| Termination Method | Screw |
| Wire Size | 26 <arrow/> 10 AWG |
| Series | UK 5-HESI |
| Colour | Black |
| Fused | Yes |
| Number of Levels | Single |
| Cable CSA | 1 mm² |
| Voltage Rating | 500 V |
| Pitch | 8.2 mm |
| Current Rating | 6.3 A |
| Minimum Operating Temperature | +105 °C |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | -60 °C |
| Standards Met | IEC 60947-7-3, IEC 60947-7-3 |
| Model Number | UK 5-HESI |
