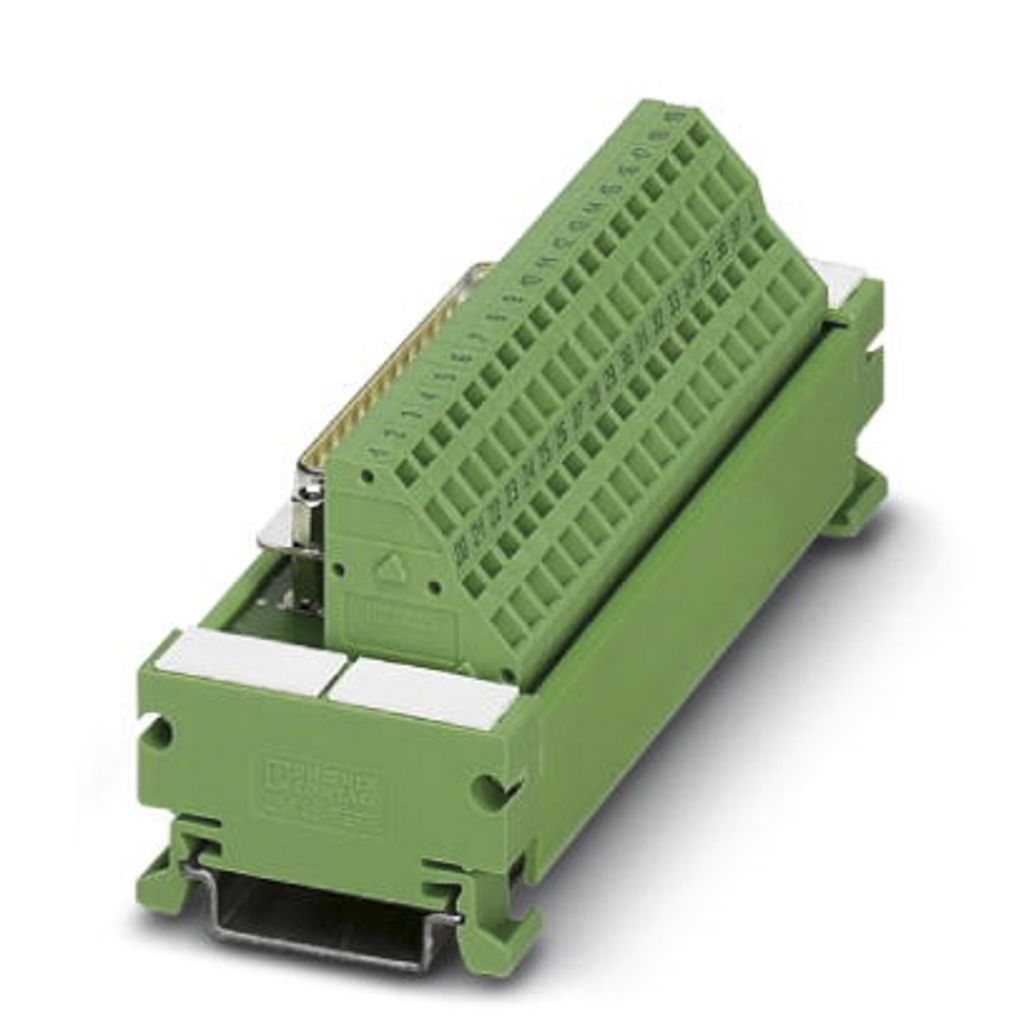

Wiring Module UM 45-D with Tension Spring Connection
Varioface compact line modules connect D-Sub socket boards or socket connectors with tension spring connection terminals
For mounting on NS 35 / 7.5
Plug housing is secured with 2 4-40UNC retaining screws
Side components equipped with identification labels
For earth contact of D-subminiature socket boards or socket connectors, the metallic connector shell is linked directly to a connection terminal
Specifications
| Attribute | Value |
| Brand | Phoenix Contact |
| Depth | 45 mm |
| Wire Size | 24 → 14 AWG |
| Connector Type | D-sub |
| Length | 90 mm |
| Number of Contacts | 25 |
| Width | 50 mm |
| Dimensions | 90 x 50 x 45 mm |
| Minimum Operating Temperature | -20 °C |
| Voltage Rating | 25 V ac, 60 V dc |
| Cable CSA | 0.2 → 2.5 mm² |
| Maximum Operating Temperature | +50 °C |
| Current Rating | 2.5 A |
| Test Proof Voltage | 800 V ac |
| Gender | Male |
| Mounting Type | DIN Rail Mount |
