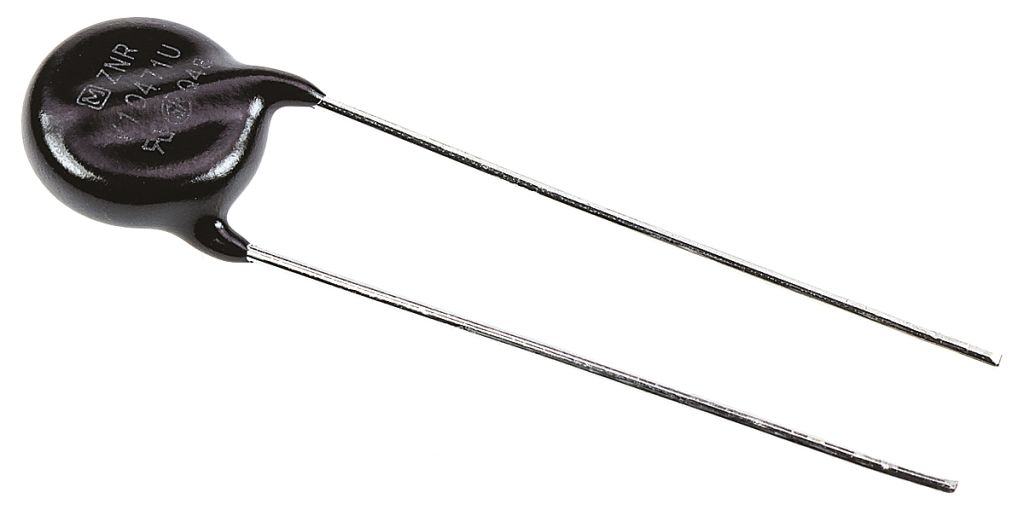

Panasonic, V Surge Absorber 230pF 25A, Clamping 775V, Varistor 470V

RS Stock No.:
7209908
Mfr. Prt No.:
ERZV10D471
Brand:
Panasonic

Technical Reference


Legislation and Compliance

RoHS Status: Not Applicable

Statement of Conformity

RS Components
Statement of Conformity

This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.

Compliant Product Details
RS stock number 7209908
Product description Panasonic, V Surge Absorber 230pF 25A, Clamping 775V, Varistor 470V
Manufacturer / Brand Panasonic
Manufacturer part number ERZV10D471

The foregoing information relates to product sold on, or after, the date shown below.

RS COMPONENTS

Date Dec 27, 2024

RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132


Product Details

Metal Oxide Varistors ZNR Series, 10mm Diameter, Panasonic

Large surge current handling capacity in relation to the compact size
Increased 2-surge current handling capability in relation to standard varistors


Specifications

Attribute Value
Brand Panasonic
Capacitance 230 pF
Maximum DC Voltage Rating 385 V
Varistor Voltage 470 V
Maximum AC Voltage Rating 300 V
Material ZNR
Energy 85 J
Series V
Lead Pitch 7.5 mm
Dimensions 11.5 (Dia.) x 6.2 mm
Clamping Voltage 775 V
Maximum Surge Current 3500 A
Clamping Current 25 A
Length 34.5 mm
Diameter 11.5 mm
Thickness 6.2 mm
Checking stock...
VND
93,702.00
Out of stock
Price Pack (1 Pack of 10)
Pack(s)Per Pack(VND)Per Unit(VND)
193,702.009,370.20
*price per unit indicative
