Product Details

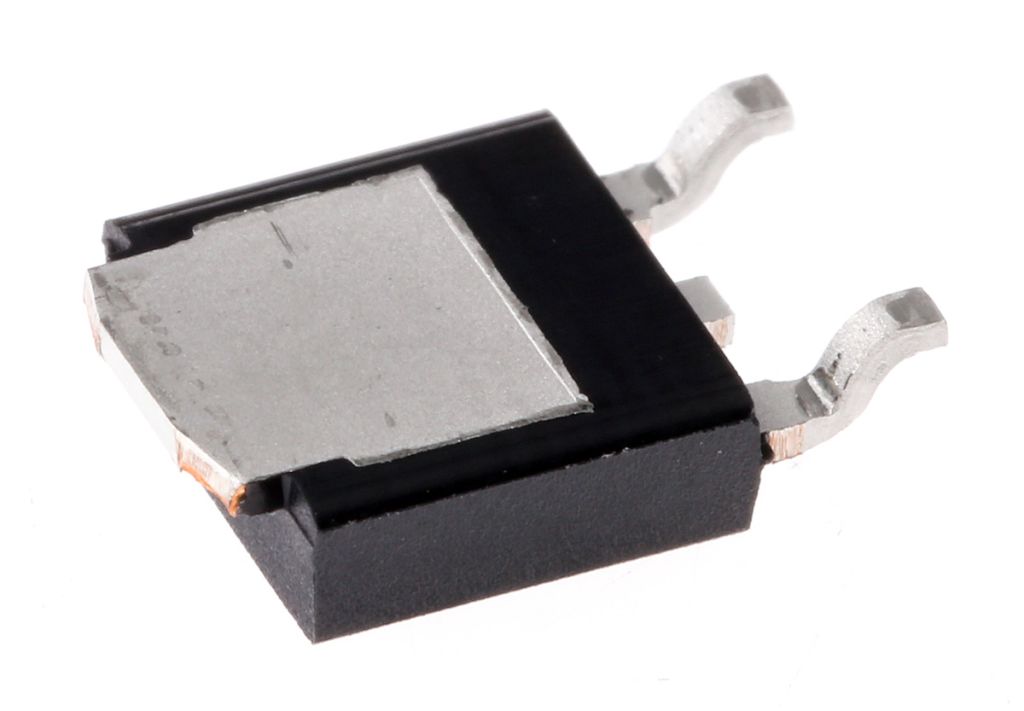

Linear Voltage Regulators, ON Semiconductor
5V MC7805 Linear voltage regulator, ON Semiconductor
This remarkable ON Semiconductor 5-volt linear voltage regulator comes under the MC7805 family. These products are monolithic integrated circuits designed as fixed-voltage regulators for a wide range of applications including local, on-card regulation. The positive 7805 voltage regulator requires no external components and incorporates internal thermal overload protection and current limiting plus safe area compensation.
Specifications
| Attribute | Value |
| Brand | ON Semiconductor |
| Maximum Operating Temperature | +125 °C |
| Output Voltage | 5 V |
| Accuracy | ±4 % |
| Length | 6.73 mm |
| Maximum Input Voltage | 35 V |
| Width | 6.22 mm |
| Pin Count | 3 |
| Regulator Type | Linear Voltage |
| Minimum Operating Temperature | 0 °C |
| Maximum Output Current | 2.2 A |
| Mounting Type | Surface Mount |
| Output Type | Fixed |
| Height | 2.38 mm |
| Number of Outputs | 1 |
| Dimensions | 6.73 x 6.22 x 2.38 mm |
| Quiescent Current | 3.2 mA |
| Line Regulation | 20 mV |
| Load Regulation | 25 mV |
| Polarity | Positive |
| Package Type | DPAK |
