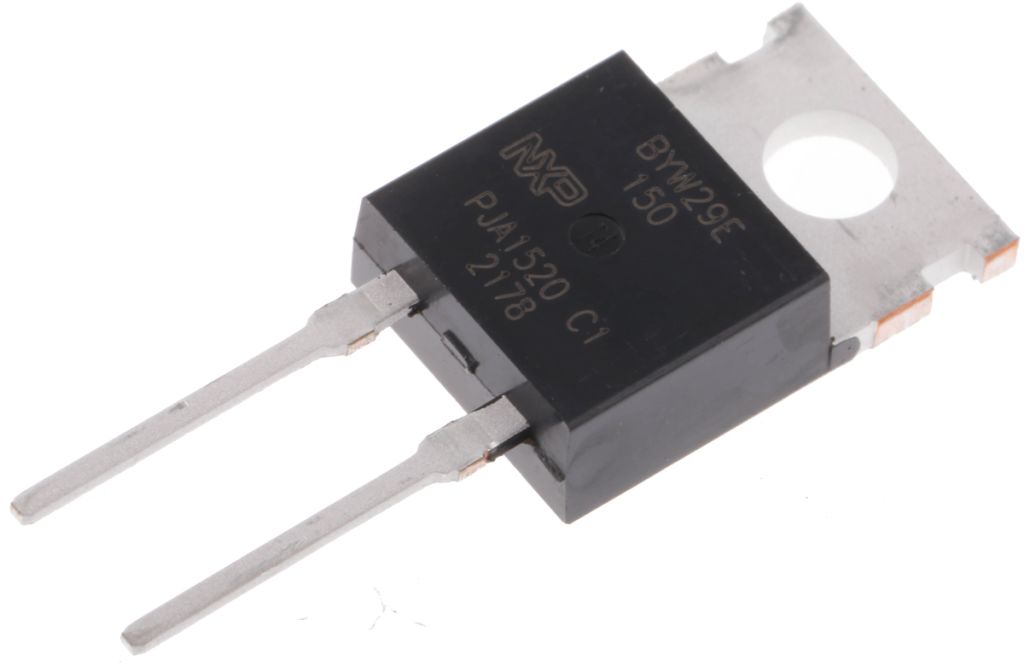

WeEn Semiconductors Co., Ltd 150V 8A, Silicon Junction Diode, 2-Pin TO-220AC BYW29E-150,127
- RS Stock No.:
- 1777379
- Mfr. Prt No.:
- BYW29E-150,127
- Brand:
- WeEn Semiconductors Co., Ltd
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
RS stock number | 1777379 |
Product description | WeEn Semiconductors Co., Ltd 150V 8A, Silicon Junction Diode, 2-Pin TO-220AC BYW29E-150,127 |
Manufacturer / Brand | WeEn Semiconductors Co., Ltd |
Manufacturer part number | BYW29E-150,127 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
Date | Nov 22, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Diodes and Rectifiers, WeEn Semiconductors
Rectifier Diodes, WeEn Semiconductors
Specifications
Attribute | Value |
Brand | WeEn Semiconductors Co., Ltd |
Mounting Type | Through Hole |
Package Type | TO-220AC |
Maximum Continuous Forward Current | 8 A |
Peak Reverse Repetitive Voltage | 150 V |
Diode Configuration | Single |
Rectifier Type | Switching |
Diode Type | Silicon Junction |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1.3 V |
Number of Elements per Chip | 1 |
Diode Technology | Silicon Junction |
Peak Reverse Recovery Time | 25 ns |
Peak Non-Repetitive Forward Surge Current | 88 A |
