Infineon XMC4800 Relax EtherCAT MCU Evaluation Board Evaluation Kit KITXMC48RELAXECATV1TOB01
- RS Stock No.:
- 9170741
- Mfr. Prt No.:
- KITXMC48RELAXECATV1TOB01
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment.
Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers.
RS definition of RoHS Compliance:
- The product does not contain any of the restricted substances in concentrations and applications banned by the Directive,
- and for components, the product is capable of being worked on at the higher temperatures required by lead–free soldering
The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:
| Substance | Concentration |
| Lead | 0.1% |
| Mercury | 0.1% |
| PBB (Polybrominated Biphenyls) | 0.1% |
| PBDE ( Polybrominated Diphenyl Ethers) | 0.1% |
| Hexavalent Chromium | 0.1% |
| Cadmium | 0.01% |
| DEHP (Bis (2-Ethylhexl) phthalate) | 0.1% |
| BBP (Benzyl butyl phthalate) | 0.1% |
| DBP (Dibutyl phthalate) | 0.1% |
| DIBP (Diisobutyl phthalate) | 0.1% |
The supplier of the item listed below has informed RS Components that the product is "RoHS Compliant".
RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate.
| RS stock number | 9170741 |
| Product description | Infineon XMC4800 Relax EtherCAT MCU Evaluation Board Evaluation Kit KITXMC48RELAXECATV1TOB01 |
| Manufacturer / Brand | Infineon |
| Manufacturer part number | KITXMC48RELAXECATV1TOB01 |
RS Components Ltd, Birchington Road, Corby, Northants, NN17 9RS, UK
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
| RS stock number | 9170741 |
| Product description | Infineon XMC4800 Relax EtherCAT MCU Evaluation Board Evaluation Kit KITXMC48RELAXECATV1TOB01 |
| Manufacturer / Brand | Infineon |
| Manufacturer part number | KITXMC48RELAXECATV1TOB01 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Nov 19, 2024 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details

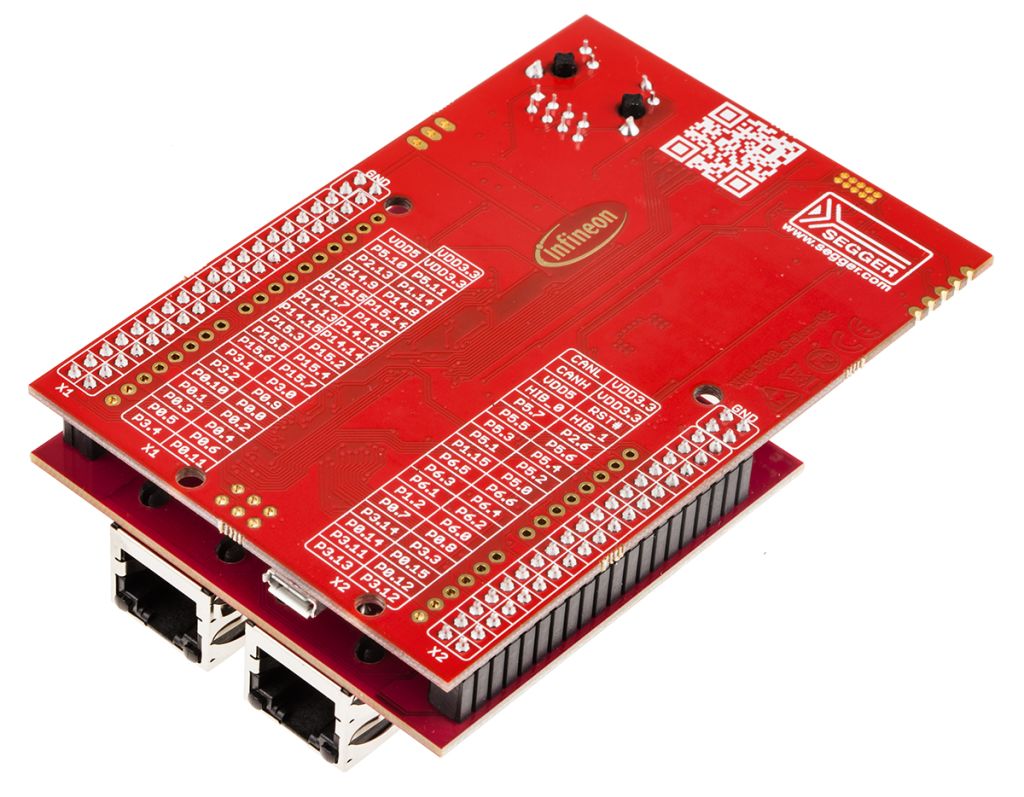

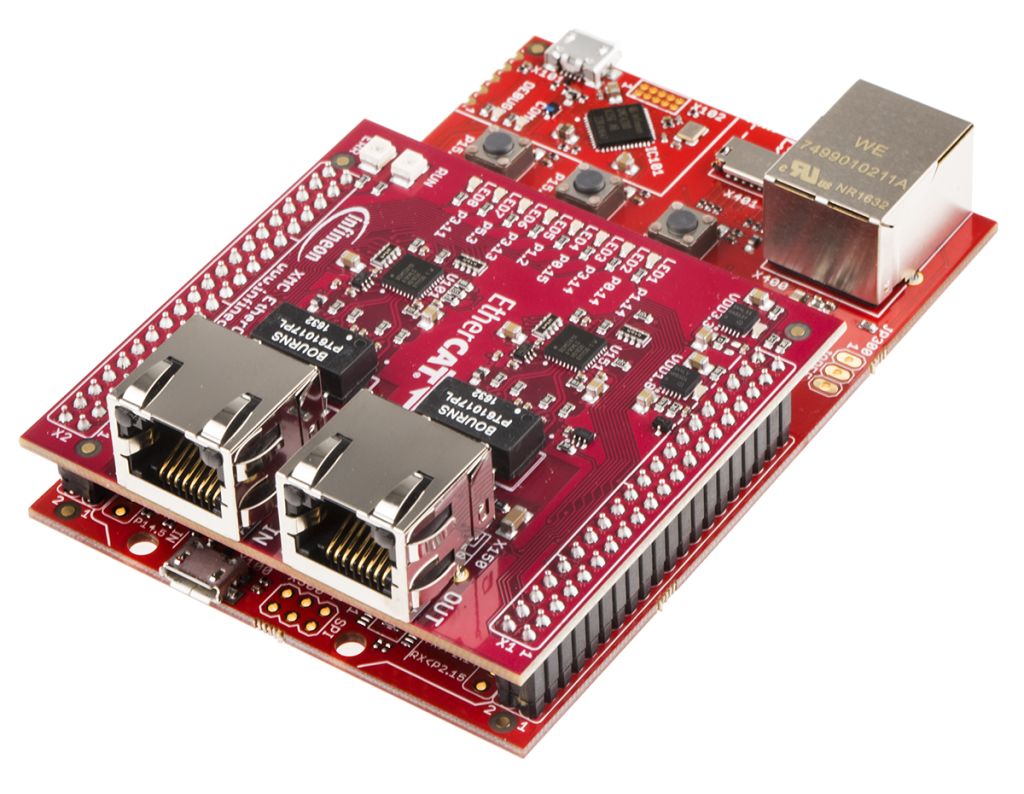

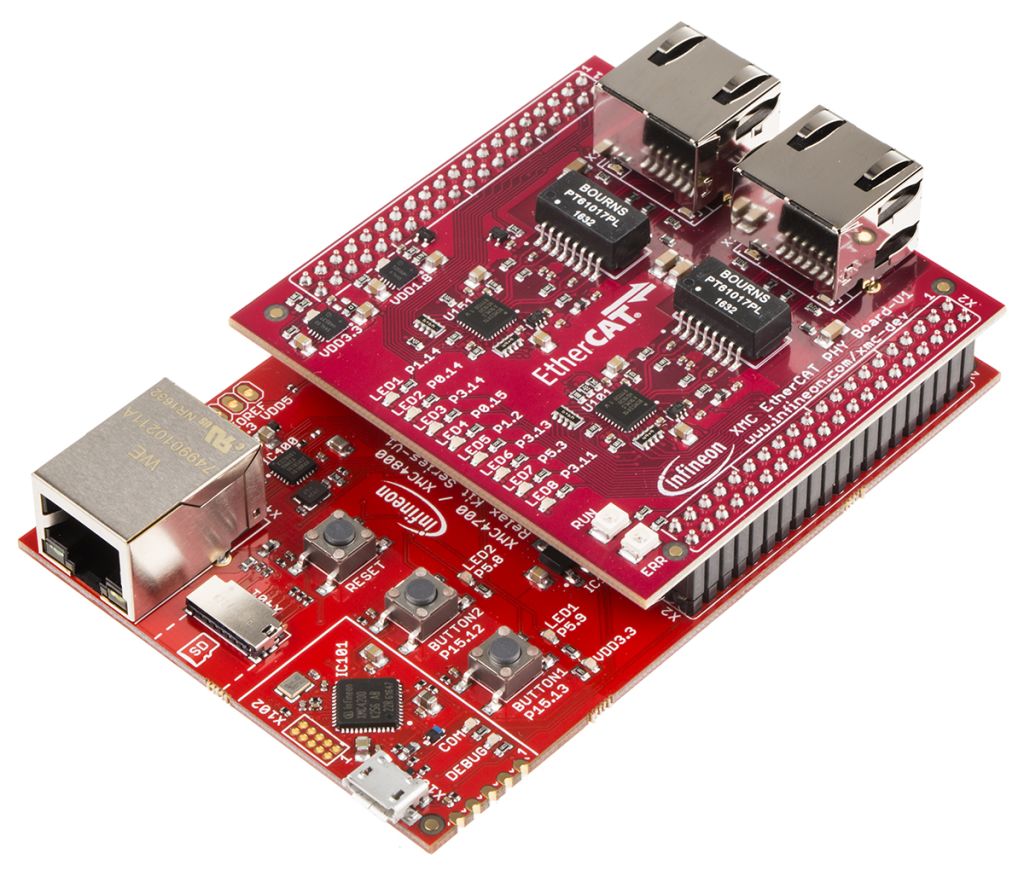

XMC4800 Relax EtherCAT MCU Evaluation Kit
Infineon technologies XMC4800 Relax EtherCAT® Kit is an evaluation kit for the XMC4800 Microcontroller. The XMC4800 family of MCU integrates the EtherCAT® node on an ARM® Cortex®M processor with on-chip flash and analogue/mixed signal abilities. The EtherCAT kit allows you to run an embedded web server and store your HTML web pages on a microSD card. As well as controlling the XMC4800 MCU on your PC via the web browser. The development kit is for EtherCAT slave devices and is ideal for the developing EtherCAT® slaves such as servo drives and intelligent I/O devices.
XMC4800 Relax EtherCAT® Kit
ARM® Cortex® M4 Microcontroller
No additional components are required
EtherCAT® ASIC, external memory or a quartz clock generator
EtherCAT® slave controller on-chip
XMC4800 (pin compatible to XMC4700)
On-board Ethernet TCP/IP
CAN node
SD/MMC card slot
Quad SPI flash
RTC Crystal
Physical layer for the EtherCAT® communication realised via the XMC™ EtherCAT® PHY board add-on
Top-mounted XMC EtherCAT® Phy Board
Arduino™ compatible connector for 3.3 V Arduino shields
Other Relax Products Available
XMC4700 Relax Kit – 917-0735
XMC4700 Relax Lite – 917-0739
XMC4700 Relax for 5 V Shields – 917-0748
Specifications
| Attribute | Value |
| Brand | Infineon |
| Classification | Evaluation Kit |
| Processor Part Number | XMC4800 |
| Processor Family Name | XMC |
| Technology | Evaluation Board |
| Device Core | ARM Cortex M4 |
| Kit Name | XMC4800 Relax EtherCAT MCU |
| Processor Type | MCU |
